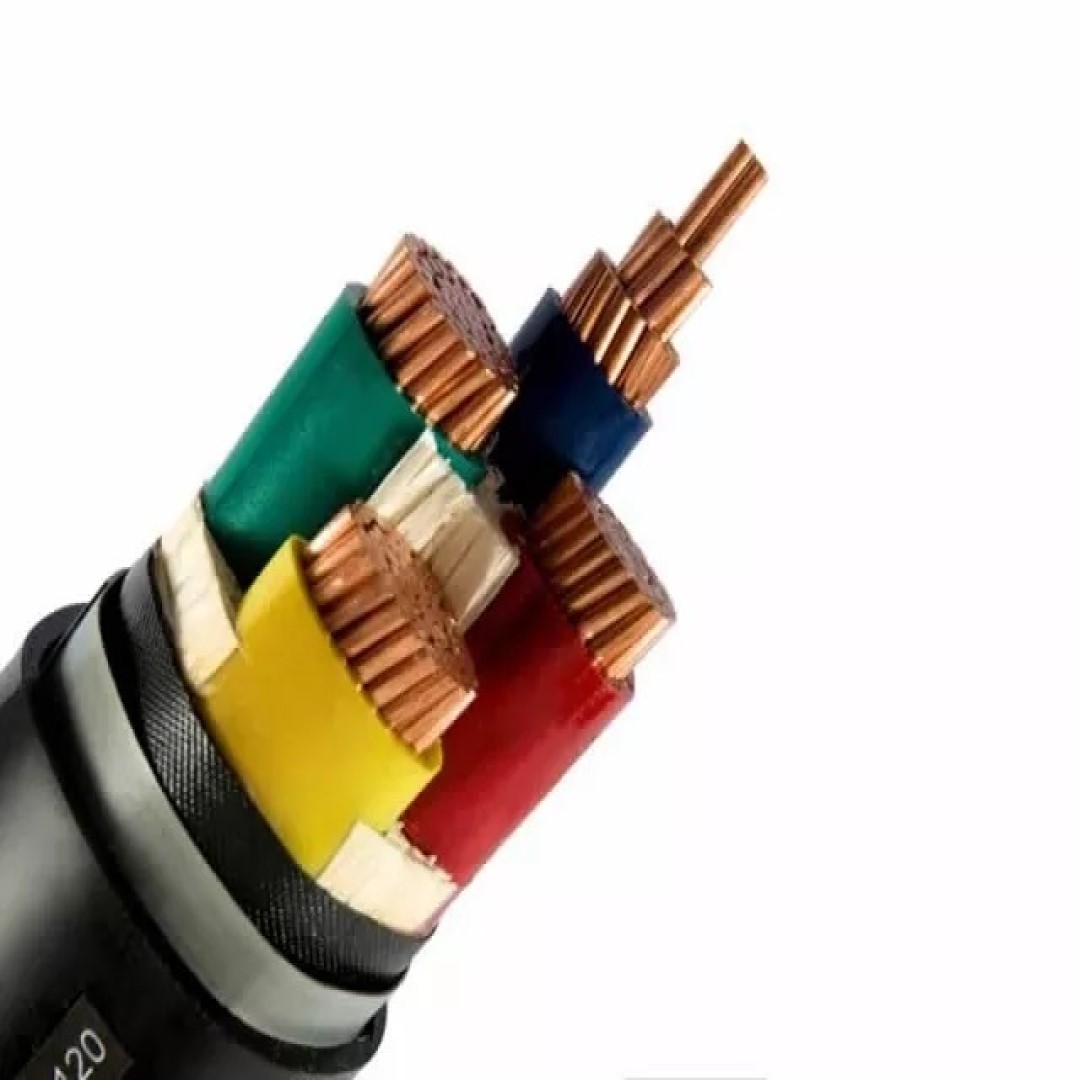

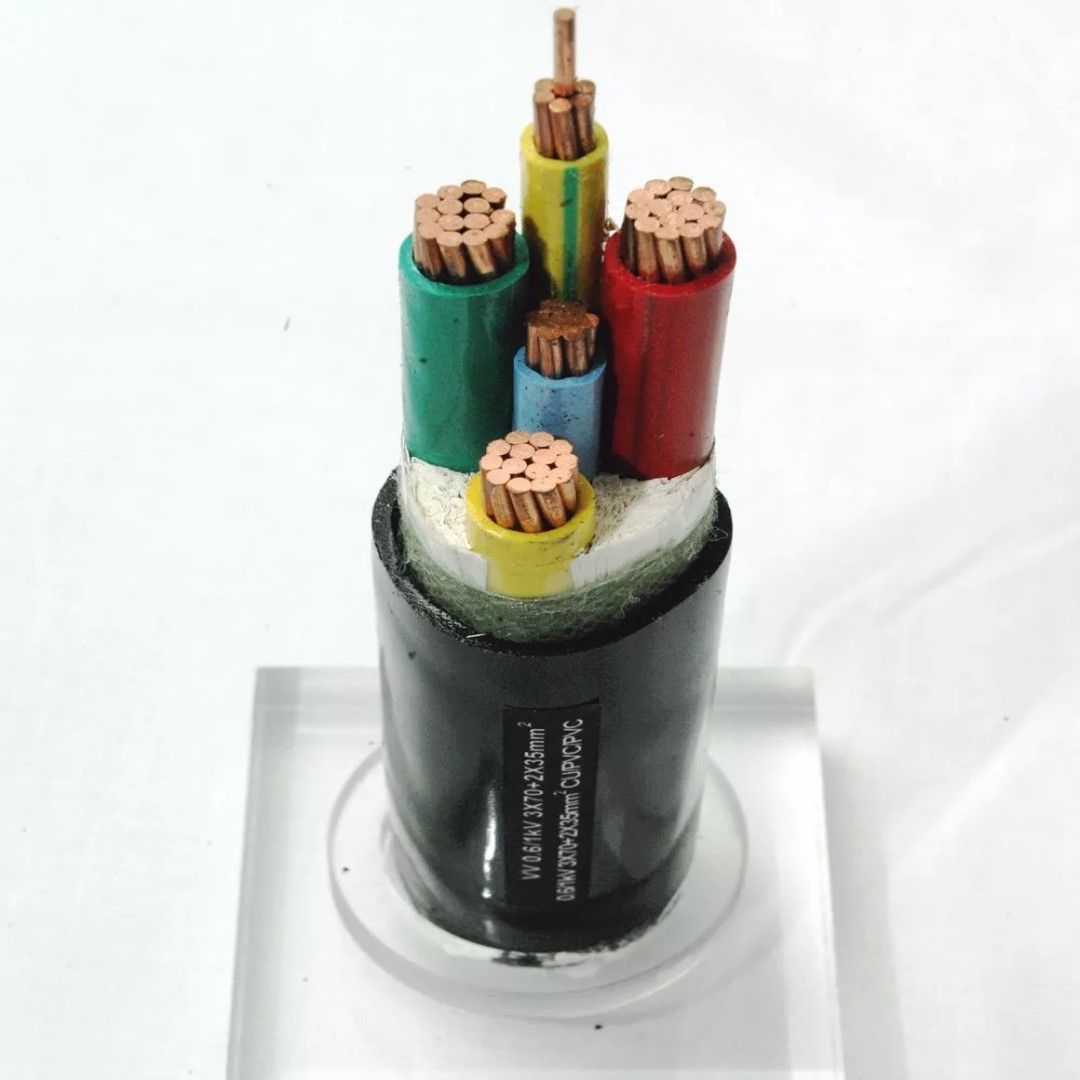

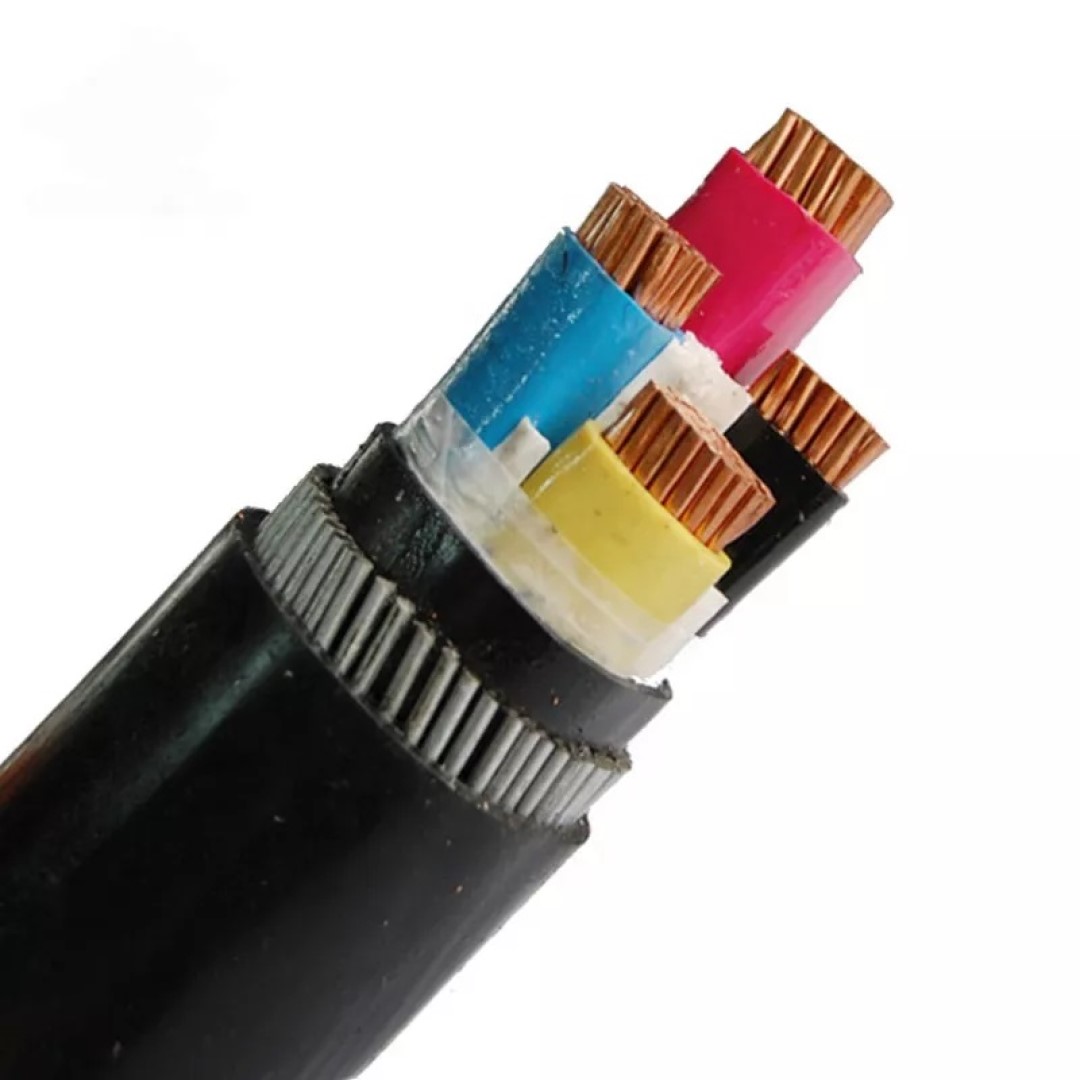

0.6/1KV LV COPPER CONDUCTOR PVC INSULATION POWER CABLE RMJT CONSULTAR STOCK POR SUCURSAL

PVC insulated power cables for rated voltages up to 0.6/1 kV are fit for AC 50Hz distribution lines for the same rated voltages. The mechanical and electrical properties of these cables are accordant with GB/T12706—2008 ( Power cables extruded insulation and their accessories of rated voltagesl kV(Umz1.2kV)up to ) and IEC-60502—1 :2004 ( Extruded insulation power cables and appendites for rated voltages 1kV up to 30kV)

Characteristics of Copper Conductor PVC Insulated Power Cable

1. Rated Voltage: 0.6/1kV

2. Max.permissible operating temperature of conductor is 70?.

3. Conductor short-circuit temperature shall not exceed 250? Max. sustaining period shall not exceed 5 seconds.

4. Bending Radius

     Bending radius of single core cable:20(D+d)±5%

     Bending radius of multi core cable:15(D+d)±5%

     D-Actual outer diameter of cable sample(mm);

      d-Actual diameter of the conductor(mm).

5. No restriction of level difference along the route for installation.

6. Installation temperature shall be heated when ambient temperature is below 0?
