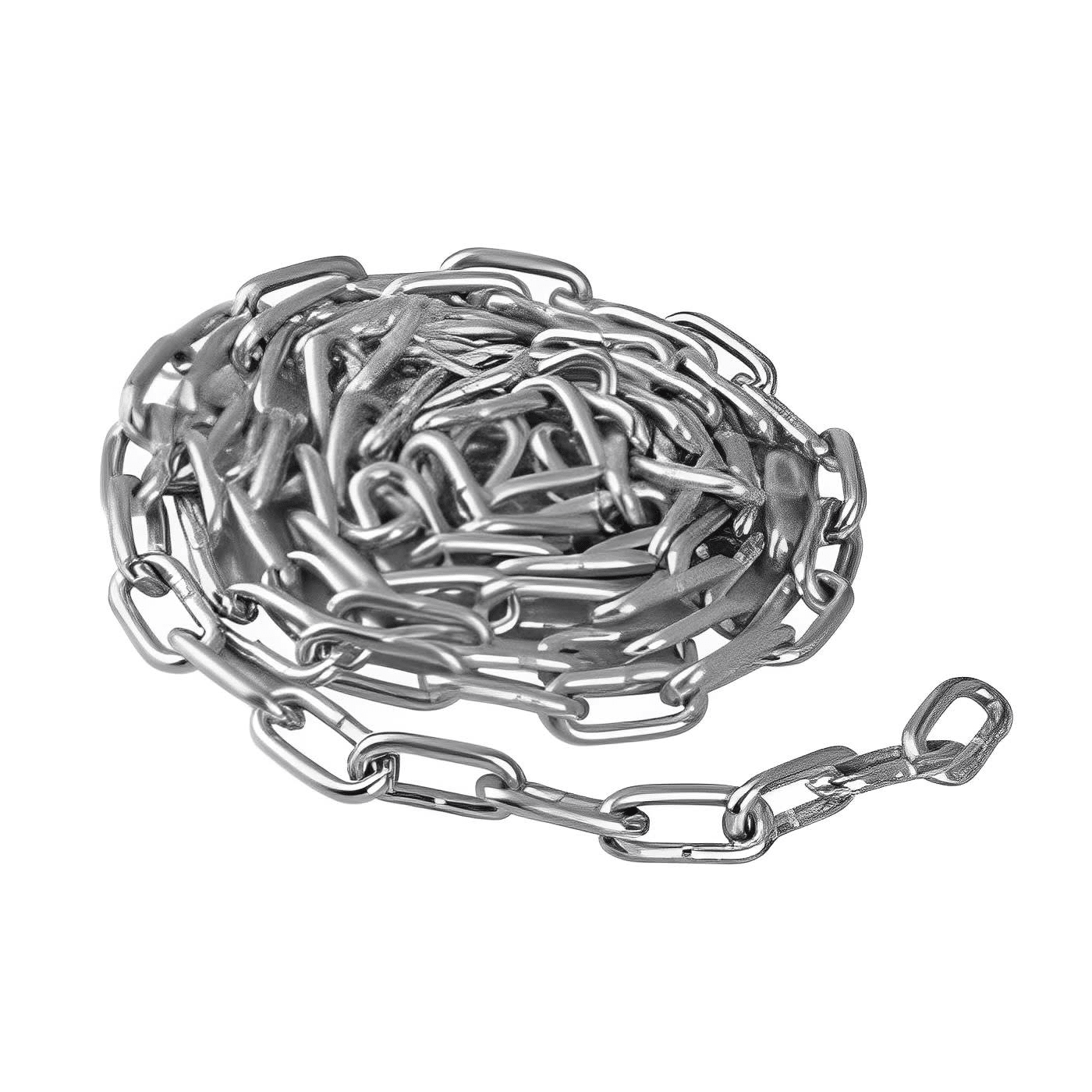

CADENA GRADO 30 DE FIERRO GALVANIZADO 3/4'' ESLABON STANDARD X MT LINEAL TIANLI CONSULTAR STOCK POR SUCURSAL
USD 66.67
| MEDIDA | CARGA DE TRABAJO | MINIMA FUERZA DE RUPTURA | ESLABON ESTANDAR | ESLABON MEDIANO | ESLABON LARGO | PRESENTACION | ||||
| (PULG.) | (Kg) | (Kg) | A (MM) | B(MM) | A(MM) | B (MM) | A (MM) | B (MM) | (Kg) | METRAJE APOX. X SACO (M) |
| 3/32 | - | - | - | - | - | - | - | - | 25 | 200 |
| 1/8 | 100 | 400 | 16 | 12 | 20 | 12 | 23 | 12 | 25 | 130 |
| 5/32 | 150 | 600 | 18.5 | 14.5 | 23 | 15 | 27 | 15 | 25 | 80 |
| 3/16 | 200 | 800 | 19 | 17 | 25 | 18 | 31 | 17 | 25 | 60 |
| 1/4 | 375 | 1500 | 22 | 21 | 26 | 23 | 33 | 21 | 50 | 59 |
| 5/16 | 600 | 2400 | 26 | 24 | 32 | 29 | 48 | 31 | 50 | 38 |
| 3/8 | 850 | 3400 | 32 | 28 | 35 | 35 | 60 | 37 | 50 | 24 |
| 1/2 | 1500 | 6000 | 43 | 39 | 50 | 45.5 | 85 | 48.5 | 50 | 14 |
| 5/8 | 2350 | 9400 | 53 | 45 | 60 | 56.7 | 114 | 61.5 | 70 - 50 | 12.0 -10.0 |
| 3/4 | 3400 | 13600 | 63 | 55 | 76 | 69 | 125 | 75 | 70- 50 | 8.5 - 7.5 |
| 1 | 6075 | 24300 | 84 | 73 | 105 | 95 | 155 | 100 | 50 | 3.9 |
