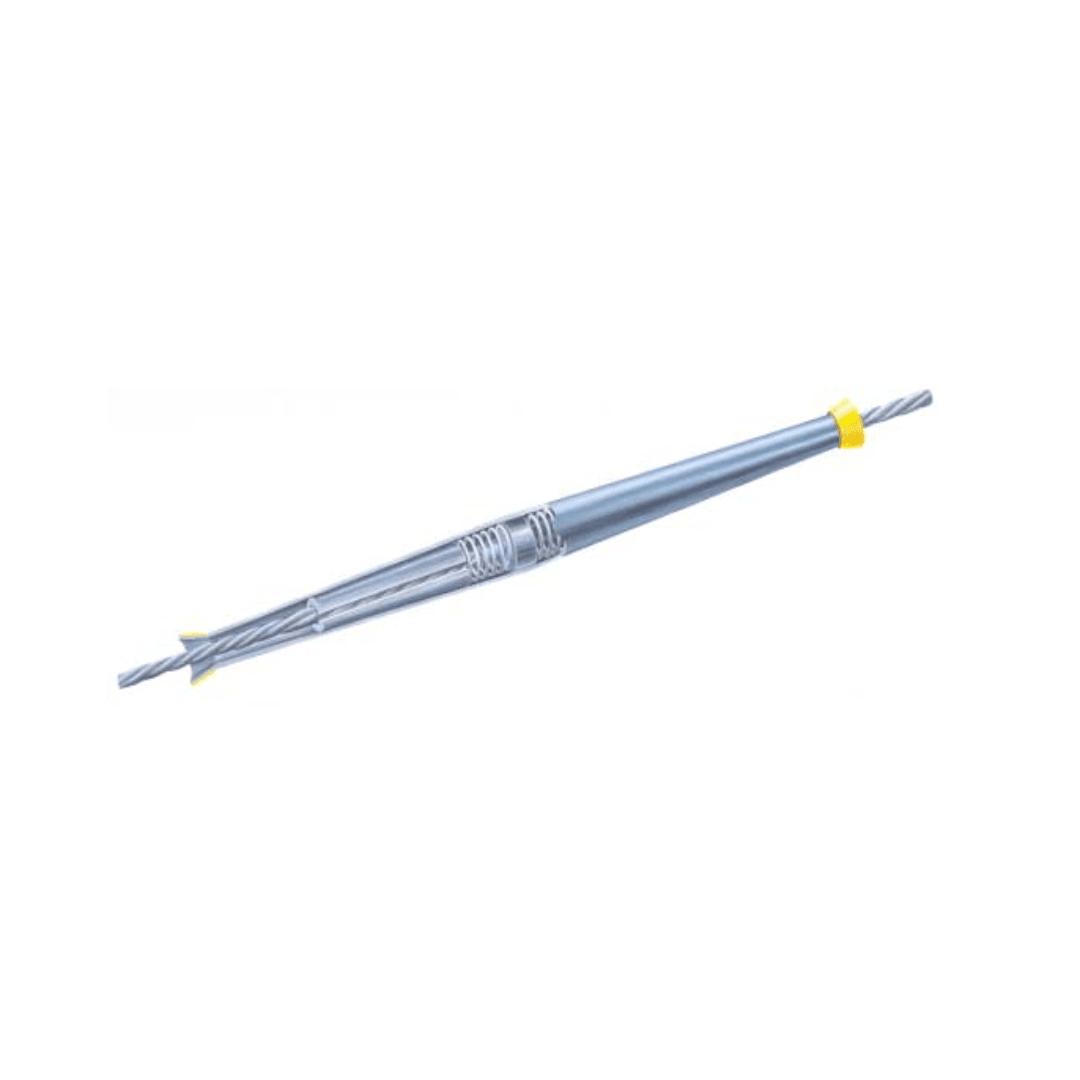

EMPALME AUTOMATICO 4AWG MODELO GL-402A FARGO CONSULTAR STOCK POR SUCURSAL
USD 72.55

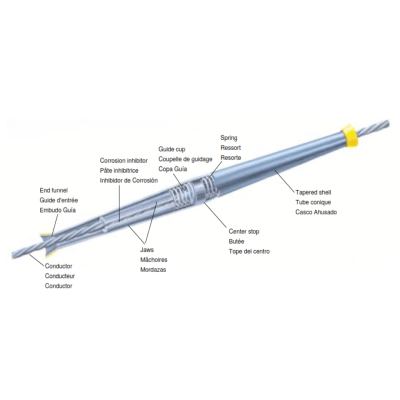

• El casco ahusado proporciona altas fuerzas de compresión
• Las mordazas embebidas en el conductor
• Las mordazas tranfieren corriente al casco de alta conductividad
• Los dientes de la mordaza penetran cualquier residuo de óxido acumulado
• La gran masa del empalme disipa el calor
• La acción de enelavamiento de las mordazas retienen conductividad bajo cambios de tensión
| CODIGO | CONDUCTORES ASTM | CONDUCTOR RANGO DE DIÁMETRO (mm) | COLOR | A (mm) | B (mm) |
| GL-402A | 4 AAC, 4AAAC, 4 ACSR | 5.59 - 6.35 | Naranja | 260 | 23 |
| GL-404A | 2 AAC, 2 AAAC, 2 ACSR | 5.84 - 8.13 | Rojo | 290 | 25 |
| GL-4042A | 2 & 4 AAC, 2 & 4 AAAC, 2 & 4 ACSR | 5.59 - 8.13 | Naranja roja | 290 | 25 |
| GL-406A | 1/0 AAC, 1/0 AAAC, 1/0 ACSR | 9.02 - 10.16 | Amarillo | 280 | 28 |
| GL-407 | 2/0 AAC, 2/0 AAAC, 2/0 ACSR | 10.16 - 11.94 | Gris | 430 | 35 |
| GL-408 | 3/0 AAC, 3/0 AAAC, 3/0 ACSR | 11.43 - 13.46 | Negro | 480 | 41 |
| GL-409A | 4/0 AAC, 4/0 AAAC, 4/0 ACSR | 12.83 - 15.11 | Rosa | 420 | 39 |
| GL-410 | 336.4 AAC, 312.8 AAAC, 266.8 ACSR 18/1 | 15.32 - 16.92 | Marrón | 480 | 42 |
| GL-411 | 397.5 AAC, 394.5 AAAC, 336.4 ACSR 18/1 | 16.74 - 18.39 | Verde | 520 | 47 |
| GL-412 | 477 AAC, 465.4 AAAC, 397.5 ACSR 18/1 | 18.34 - 20.19 | Azul | 560 | 50 |
| GL-413 | 556.5 AAC, 559.5 AAAC, 477 ACSR 18/1 | 19.81 - 21.79 | Blanco | 600 | 54 |
| GLT-1316A | 266.8 ACSR 26/7 | Natural | 890 | 57 | |
| GLT-1317A | 336.4 ACSR 26/7 | Verde | 620 | 44 | |
| GLT-1319A | 477 ACSR 26/7 | Natural | 890 | 57 | |
| GL-1333A* | 636 AAC, 556.5 ACSR 18/1 | 21.34 - 23.37 | — | 370 | 51 |
| SÓLO ALUMINIO Y ALEACIÓN DE ALUMINIO | |||||
| GL-1195A | 3/0 AAC, 2/0-3/0 AAAC | 10.59 - 13.51 | — | 250 | 32 |
| GL-1205A | 266.8 AAC | 13.16 - 15.11 | Natural | 230 | 32 |
| GL-1355A* | 700 - 715 AAC & AAAC | 23.80 - 24.80 | — | 390 | 51 |
| GL-1385A* | 795 AAC & AAAC | 25.30 - 26.19 | — | 400 | 51 |
| GL-1441A* | 954 AAC & AAAC | 27.94 - 28.96 | — | 400 | 51 |
