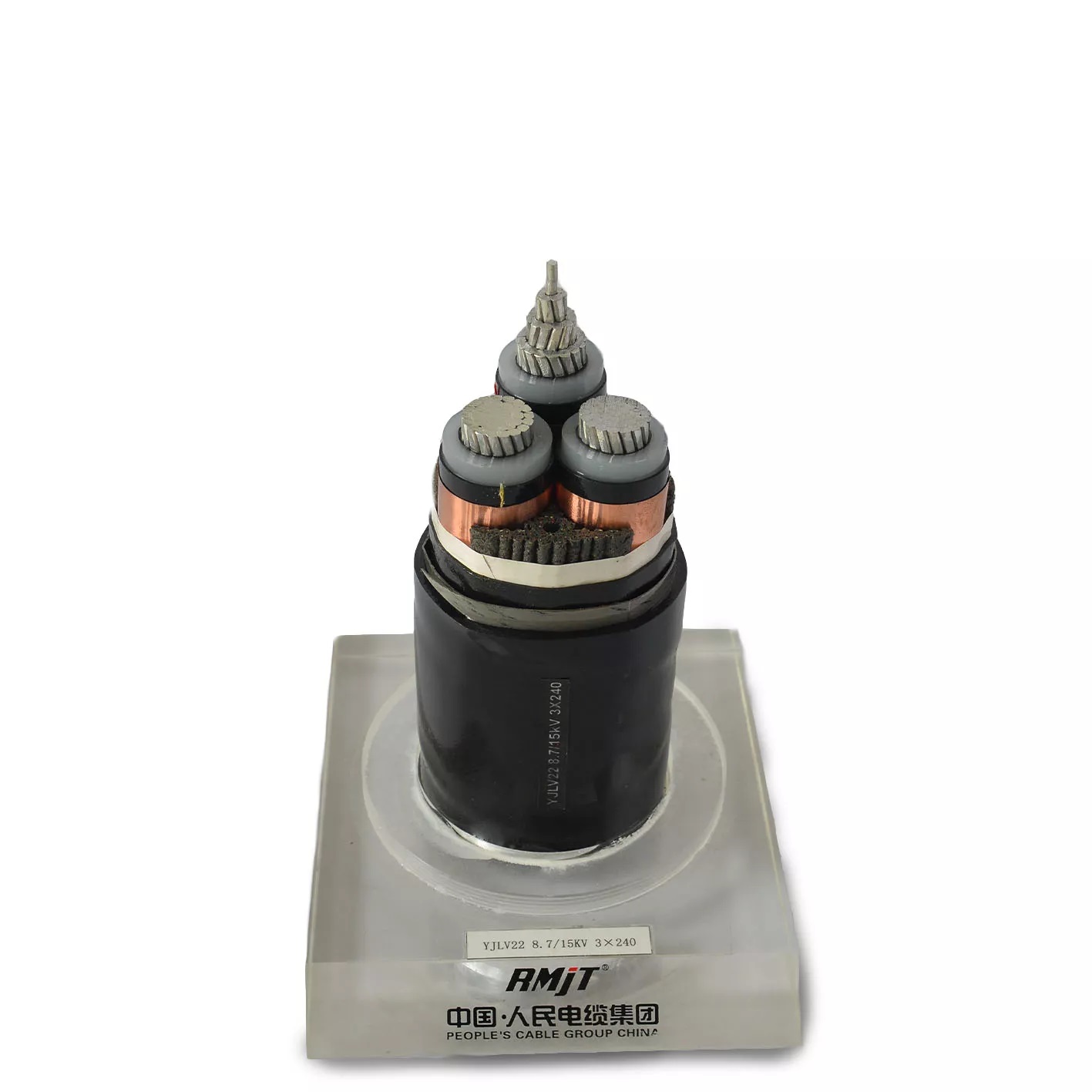

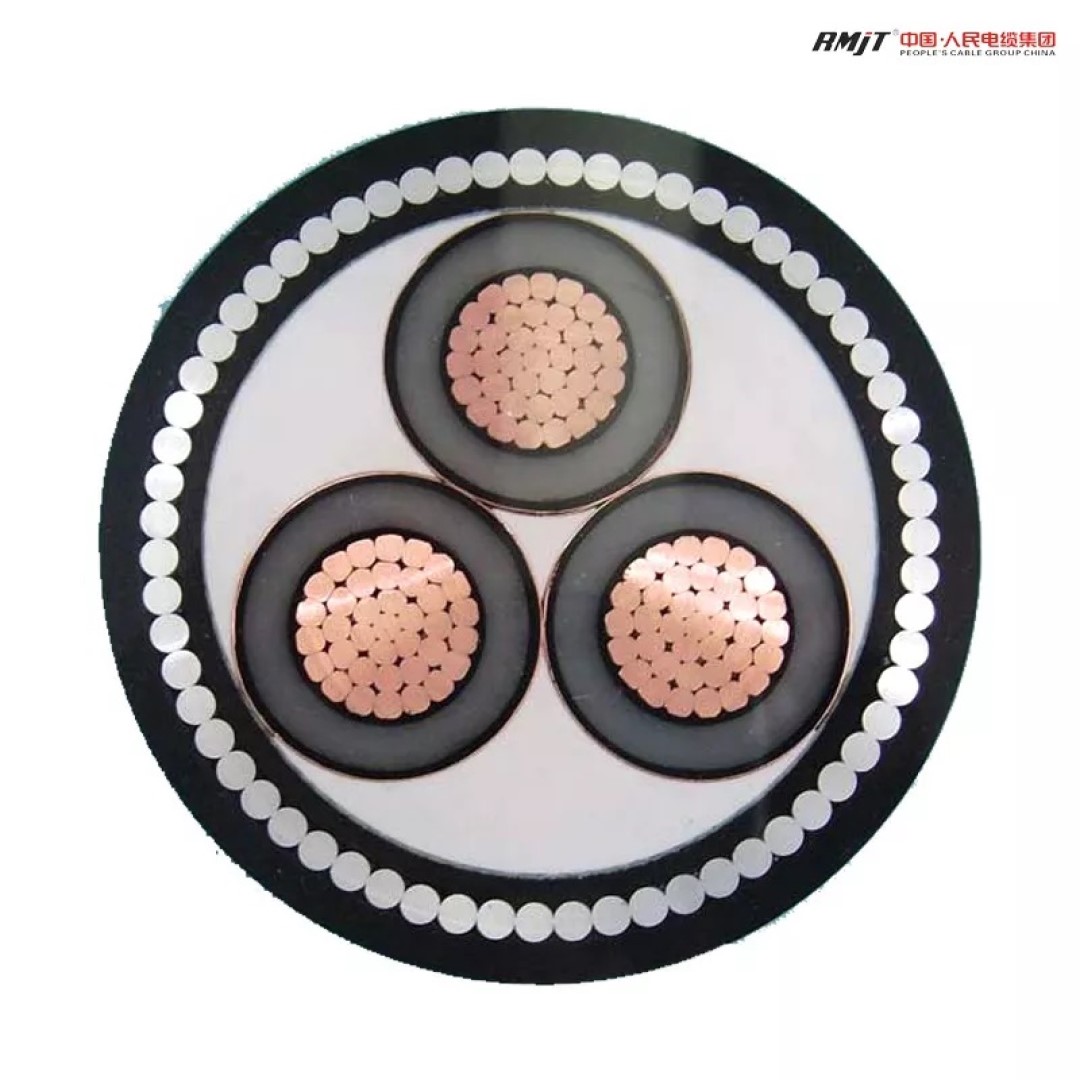

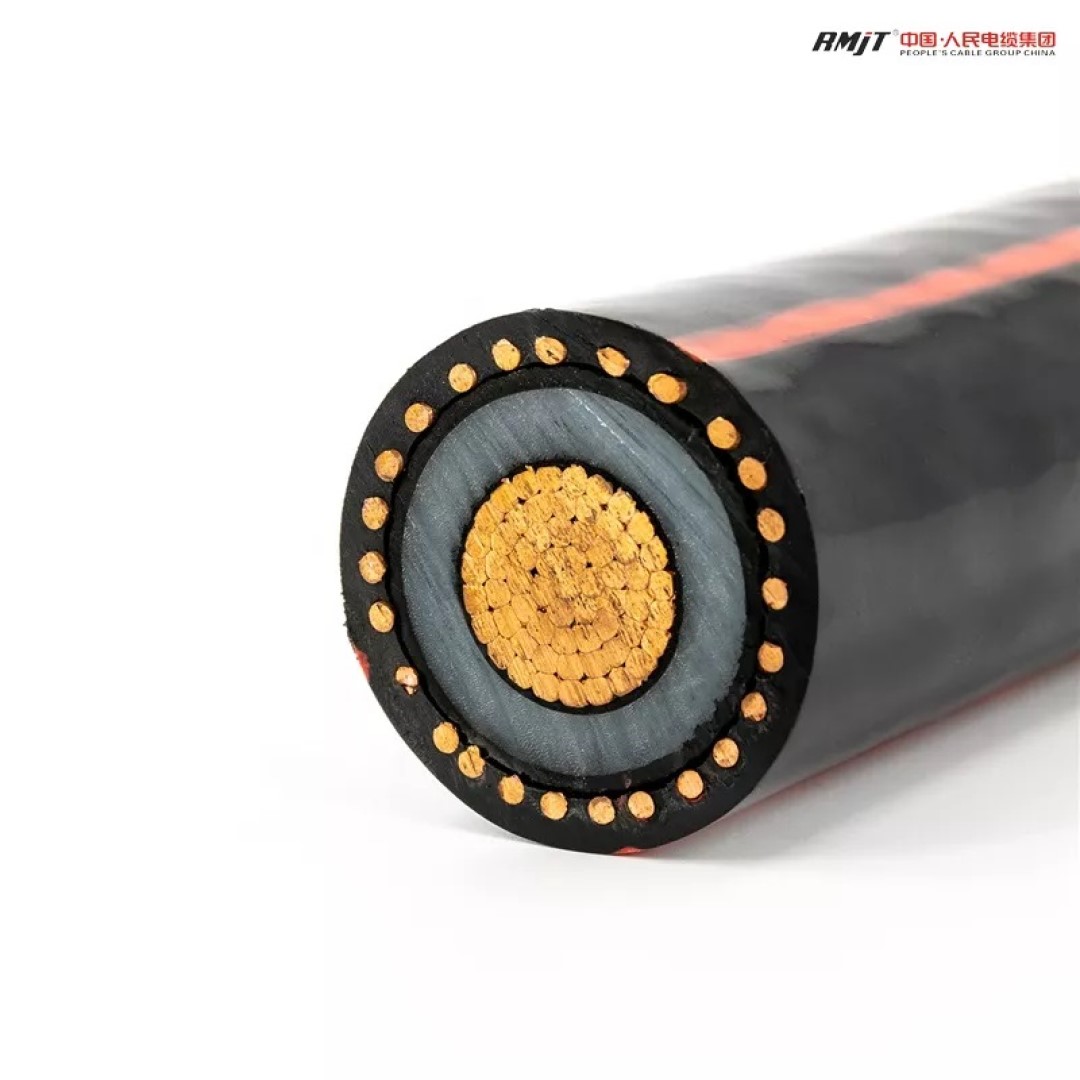

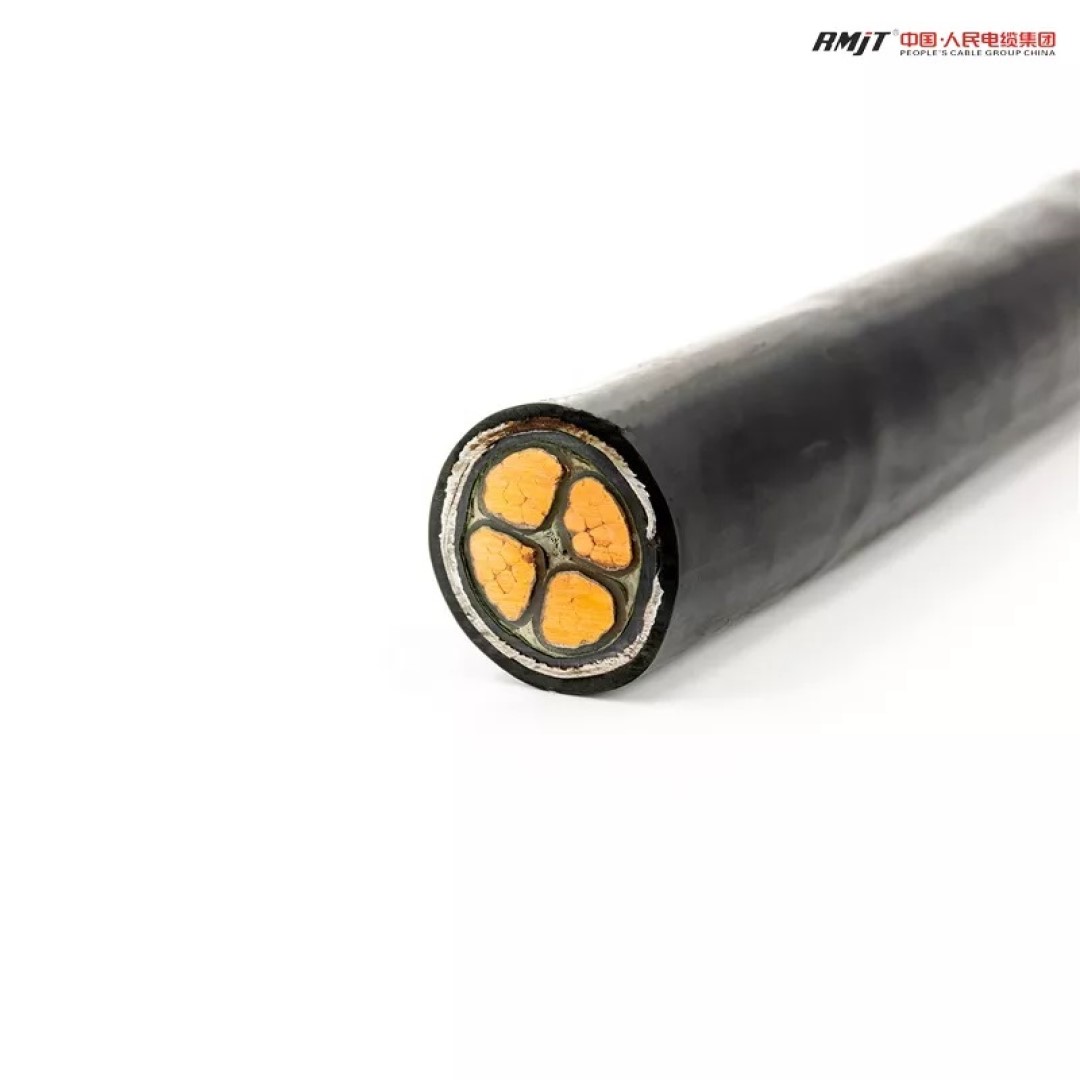

8.7/10KV (15KV) ALUMINUM CONDUCTOR XLPE INSULATED UNDERGROUND MEDIUM VOLTAGE POWER CABLE RMJT CONSULTAR STOCK POR SUCURSAL

This cable is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage 35kV or lower. In comparison with PVC insulation cable, it boasts not only excellent electric character, mechanical character, heat and aging-resistant character, environmental stress-resistant character and chemical corrosion- resistant character, but simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working as well.

Working conditions:

1.This maximum working temperature of the conductor is 90 0C;

During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall       not be above 250 0C; Environment temperature should be no lower than 00C for laying the cable;

2.Bending radius allowance of the cable:

 Single core cable: No steel tape cable 20D; Steel tape cable 15D

Cores cable:  No steel tape cable 15D; Steel tape cable 12D.

 Notes: D practical external diameter of cable.
