6/10kV, 11kV, (12kV) Aerial insulated cable for Overhead

APPLICATION:

It consists of copper or aluminum conductor, inner shielding layer, weather-proof insulation material and outer shielding layer. It has not only power-transmitting character of power cable, but strong mechanical character of aerial cable as well. In comparison with bare wire, it boasts many advantages such as small span in laying the cable ,high reliability and good aging –resistant character , Is an cable species that city & town electric power engineering have the initiative to choose to use

CONSTRUCTION:

The conductors are HD Copper Wire, 1350-H19 Aluminum Wire ,or ACSR conductors, concentrically stranded and cross-linked polyethylene(XLPE) insulated, covered for weather proofing with polyethylene(PVC), high density polyethylene(HDPE)

STANDARS:

IEC 60502 :

IEC 60227 :

Type, description & application of aerial insulated cable

Type	Name	Nominal cross-section area mm2	Application
JKTRYJ	Soft copper conductor XLPE insulation aerial cable	10~120	The transformer leads to connect the line
JK(L)YJ	Cu (Al) conductor XLPE insulation Aerial cable	16~240	In fixedly laying the cable, The user must keep certain distance between cable and trees. During power transmission, allow the cable with the multifarious contact in tree
JK(L)Y	Cu (Al) conductor XLPE insulation Aerial cable	16~240
JKLGYJ	Steel-Al conductor XLPE insulation Aerial cable	25/4~300/40
JKLGY	Steel-Al conductor HDPE insulation Aerial cable	25/4~300/40
JKLYJ/Q	Al conductor light XLPE insulation Aerial cable	16~240	In fixedly laying the cable, The user must keep certain distance between cable and trees. During power transmission, the cable can be allowed in contact with trees just for a short time.
JKLY/Q	Al conductor light HDPE insulation Aerial cable	16~240
JKLGYJ/Q	Steel-Al conductor light XLPE insulation Aerial cable	16~240
JKLGY/Q	Steel-Al conductor light HDPE insulation Aerial cable	16~240

Conductor DC resistance?Insulate resistance & conductor splitting force

NCS-Area	Conductor DC resistance			Insulate resistance		Conductor
mm2	?/km			M?.km		Min Splitting Source
	Hard Cu	Cu	Al	700C	900C	Hard Cu	Al
10	1.906	1.83	3.08	0.0067	0.67	3471	1650
16	1.198	1.15	1.91	0.0065	0.65	5486	2517
25	0.749	0.727	1.2	0.0054	0.54	8465	3762
35	0.54	0.524	0.868	0.0054	0.54	11731	5177
50	0.399	0.387	0.641	0.0046	0.46	16502	7011
70	0.276	0.268	0.443	0.004	0.4	23461	10354
95	0.199	0.193	0.32	0.0039	0.39	31759	13727
120	0.158	0.153	0.253	0.0035	0.35	39911	17339
150	0.128	/	0.206	0.0035	0.35	49505	21033
185	0.1021	/	0.164	0.0035	0.35	61846	26732
240	0.0777	/	0.125	0.0034	0.34	79823	34679
300	0.0619	/	0.1	/	/	99788	43349

Clase de conductor	Cable aislado aéreo
Tension	11KV

Modelo	NA2XSA2Y-S
Calibre	3-1X120MM
Clase de conductor	Cable de aluminio autoportante
Presentacion	Mt lineal
Tension	18/30KV (36 KV)

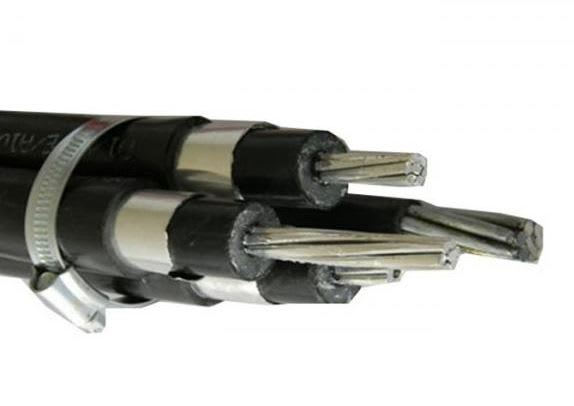

CABLE NA2XSA2Y-S 3-1X120MM 18/30KV (36 KV) RMJT CONSULTAR STOCK POR SUCURSAL

También Podría Interesarte

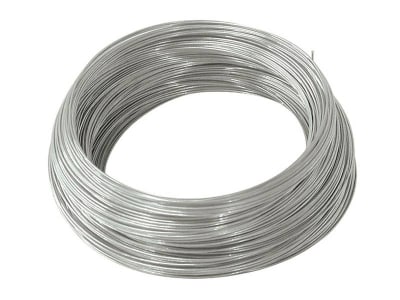

ALAMBRE REDONDO ALUMINIO 6.0MM PARA AMARRE RMJT CONSULTAR STOCK POR SUCURSAL
